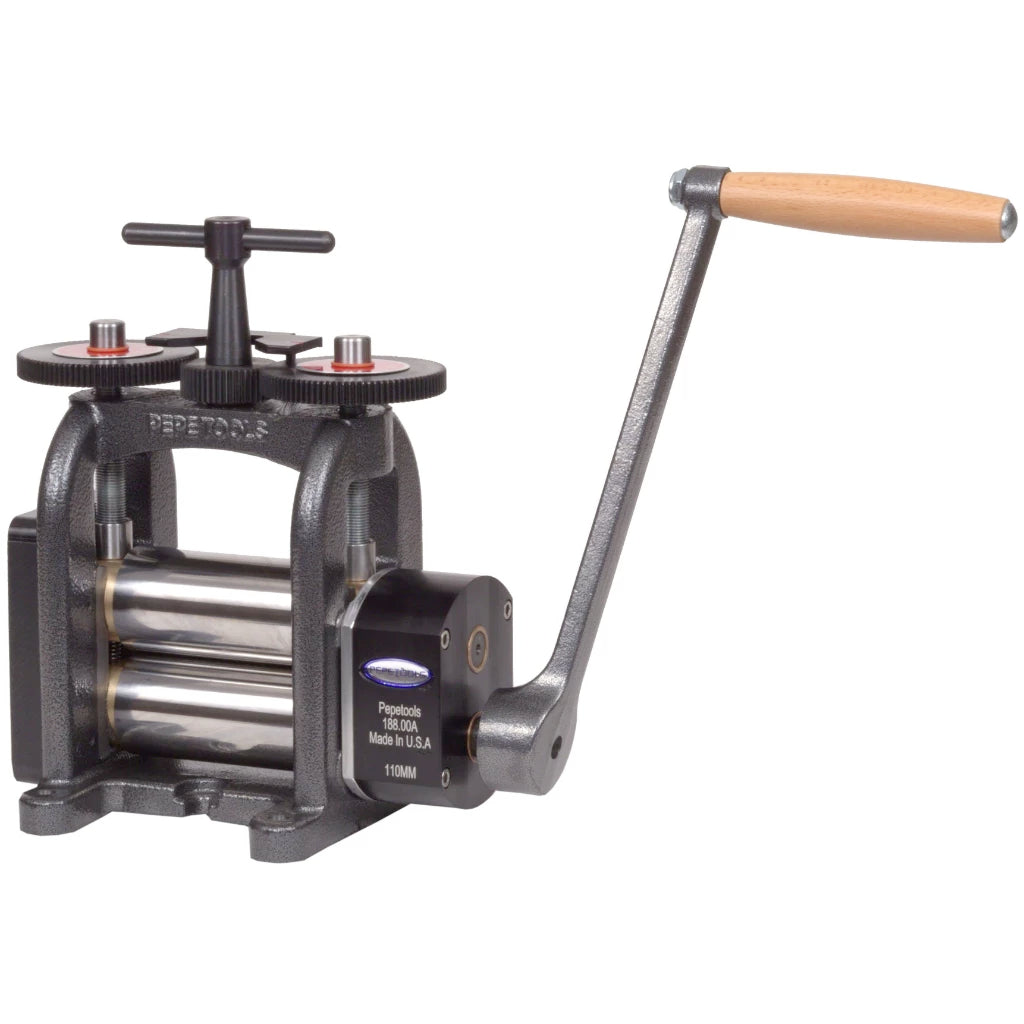

110MM Flat Ultra Mill with Ductile Frame

This item ships directly from Pepetools and may ship separately from the rest of your order. Separate shipping charges may occur.

• Gear ratio 4:1
• Roller width - 110mm
• Roller diameter - 55mm
• Maximum opening - 5mm
• Flat area (+/- 0.01mm) - 110mm
• Capable of producing metal foil as thin as .001"
• All models equipped with 4:1 reduction gear box
• Custom designed heavy duty packaging
• Precision hobbed gears from solid steel - no casted gears
• High strength housing
• Custom designed maintenance free bronze bushings
• Induction hardened in strategic areas to 65HRC hardness
• Polished and machined rolls to achieve a mirror finish

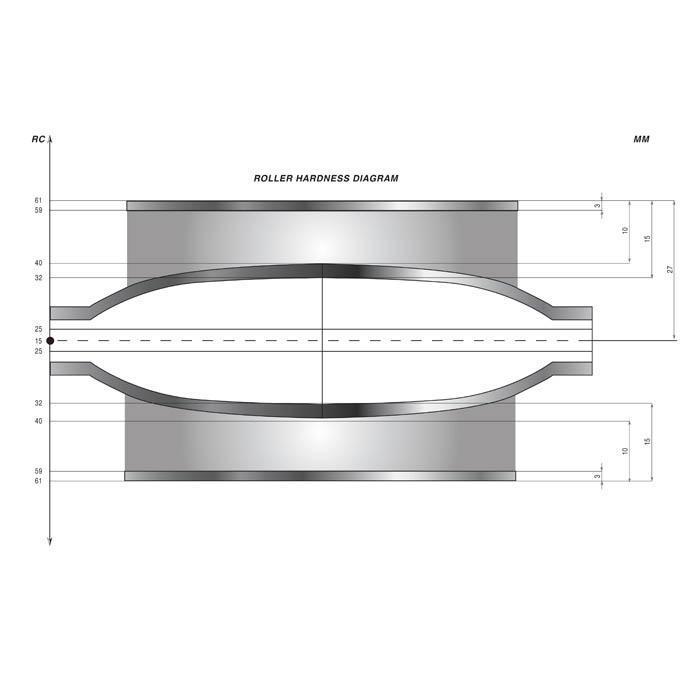

We have started utilizing a unique hardening procedure which allows us to market superior rollers that will perform beautifully.Our rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to 65 HRC for superior deformation resistance.
