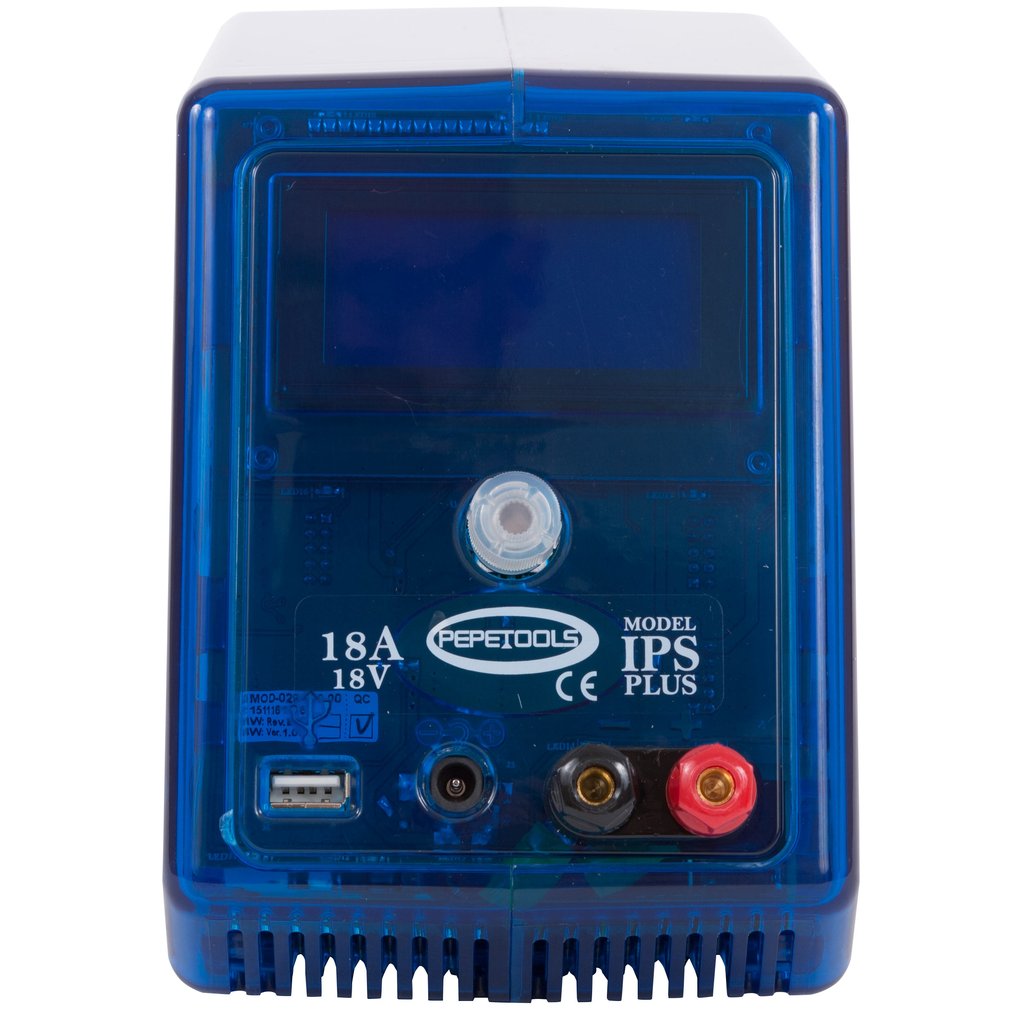

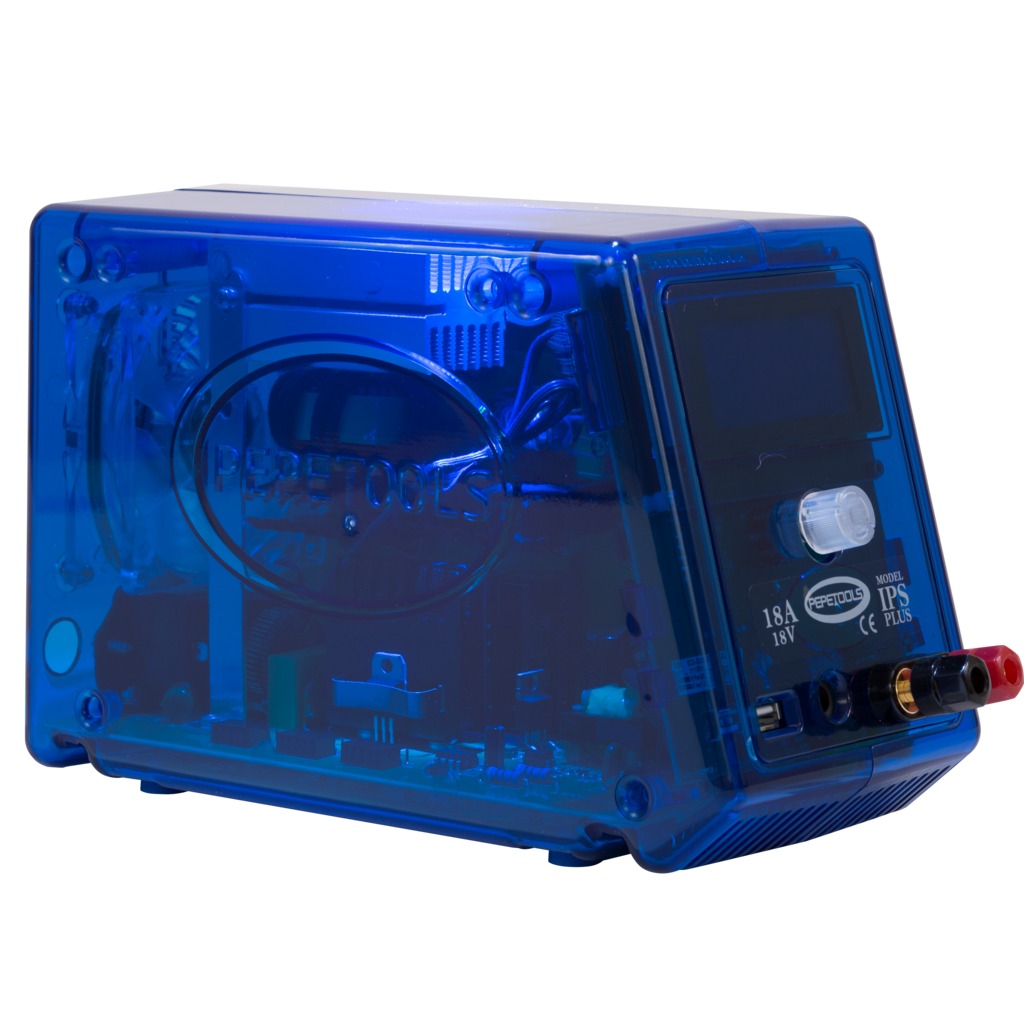

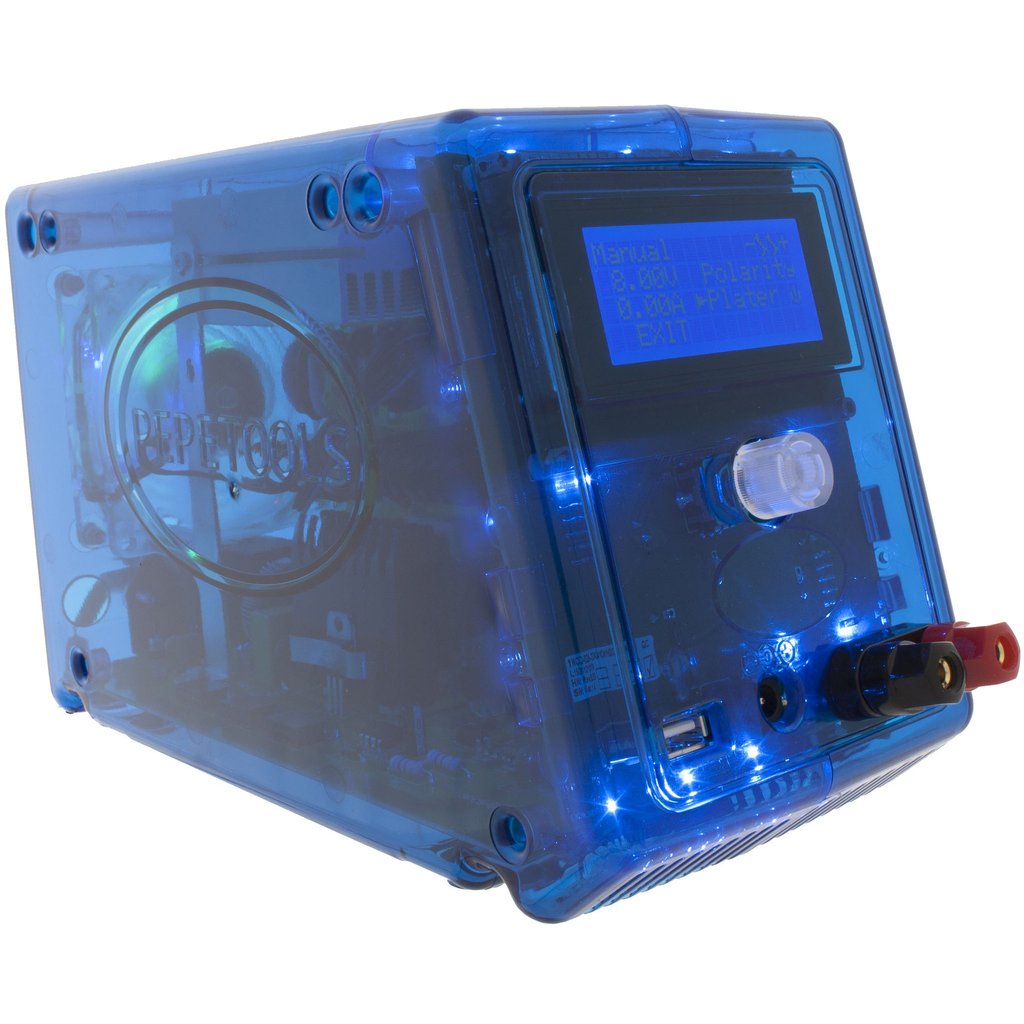

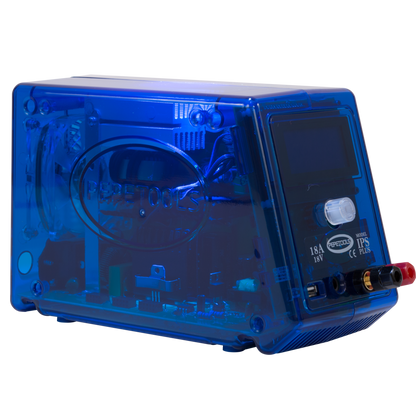

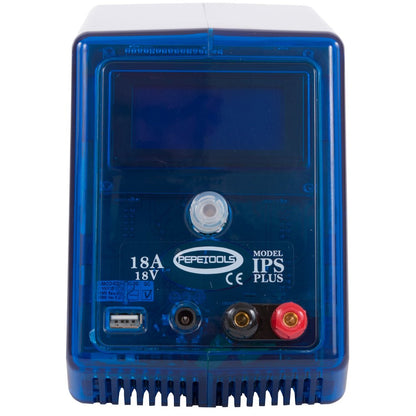

Intelligent Plating System - Programmable Rectifiers by Pepetools
Intelligent Plating System - Programmable Rectifiers by Pepetools
4974 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
This item ships directly from Pepetools and may ship separately from the rest of your order. Separate shipping charges may occur.
Pepetools first introduced a leading line of plating equipment nearly 20 years ago. Every product cycle in this line trumps the previous version by setting a new milestone. This plating system is one of a kind, "CE" certified and Patent Pending internal architecture designed and engineered by Pepetools in the USA!
This product is also available fully calibrated with a certificate - if you would like calibration services please contact us for more information.
IPS Intelligent Plating System is available in the following configurations;
- 10A/12V
- 18A/18V
- 25A/12V
Each amperage/voltage configuration is available with with the following features;
-
IPS - LITE
- Fully Digital Display
- One Button Reverse Polarity
- Dual Voltage 110/220V
- Auto Short Protection
-
IPS - PLUS
- All of the features of the IPS - LITE
- Fully programmable features such as
- Plating voltage and amperage
- Time to plate (from 1 second to 9 hours and 59 minutes)
- Reverse polarity time
- Integrated Amp Hour counter
- Storage space for 5 individual programs
- Each program can store parameters such as;
- Plating Time
- Reverse Polarity Time
- Current Voltage
- Current Amperage
- Start Delay
- Sequential Programming
- Set each program (1-5) in order, or any order to run sequentially. Great for large scale operations.
-

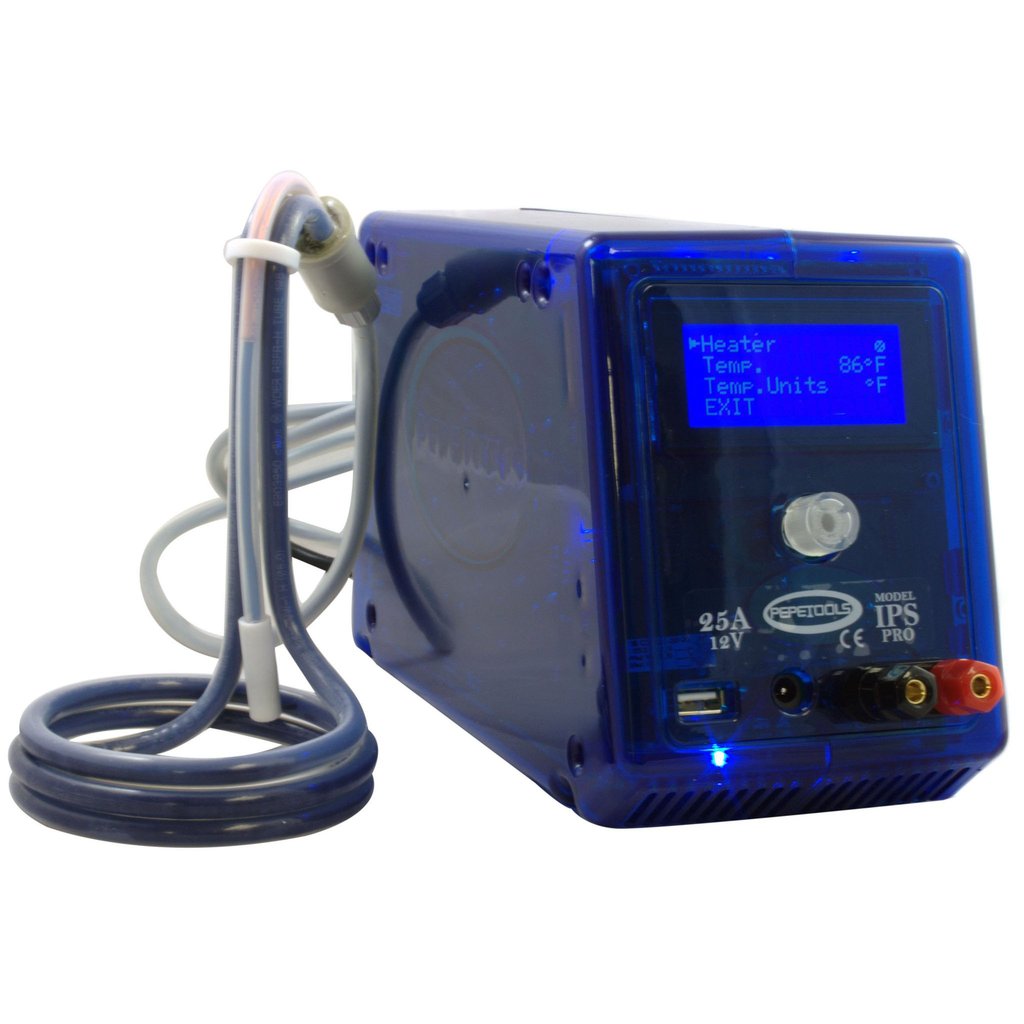

IPS - PRO
- Combines the features of the IPS - LITE & IPS - PLUS
- Solution Coil Heater that fits into a 1000ML Beaker
- Fully programmable heat in either degrees Fahrenheit or Celsius
- Accurate up to +/- 1 degree C/F
- All in one system that is perfect for rhodium and all other types of plating
Check out the PDF on a customers results during the Copper Via Fill Process
